AC Chargers, EV Chargers
Princess EV 7KW – 44KW AC charging station
SPECIFICATION TABLE
| DESCRIPTION | VALUE |
| Rated Voltage | 230 VAC – 400 VAC |
| Current Range | 32A |
| Charging plug | 3-phase plug + 4.8m |
| Frequency | 50 / 60 Hz |
| Rated Power | 7 kW – 44 kW |
| Charging Gun | 5m Charging Gun with GBT / CCS2 / CCS1 / CHadeMO Standard |
| Started mode | Plug-and-play/RFED Card/APP |
| Display Screen | 3.5-inch LCD Screen |
| IP Grade | IP 54 |
| Cooling | Fan Cooling |
| Working Temperature | -20°C ~ +50°c |
| Storage Temperature | -30 ~ +50°C |
| Cooling | Natural Cooling |
| Unit Size | H = 1500 MM, W = 300 MM, D = 470 MM |
| Mounting | Floor Standing |
| BRAND | PRINCESS |

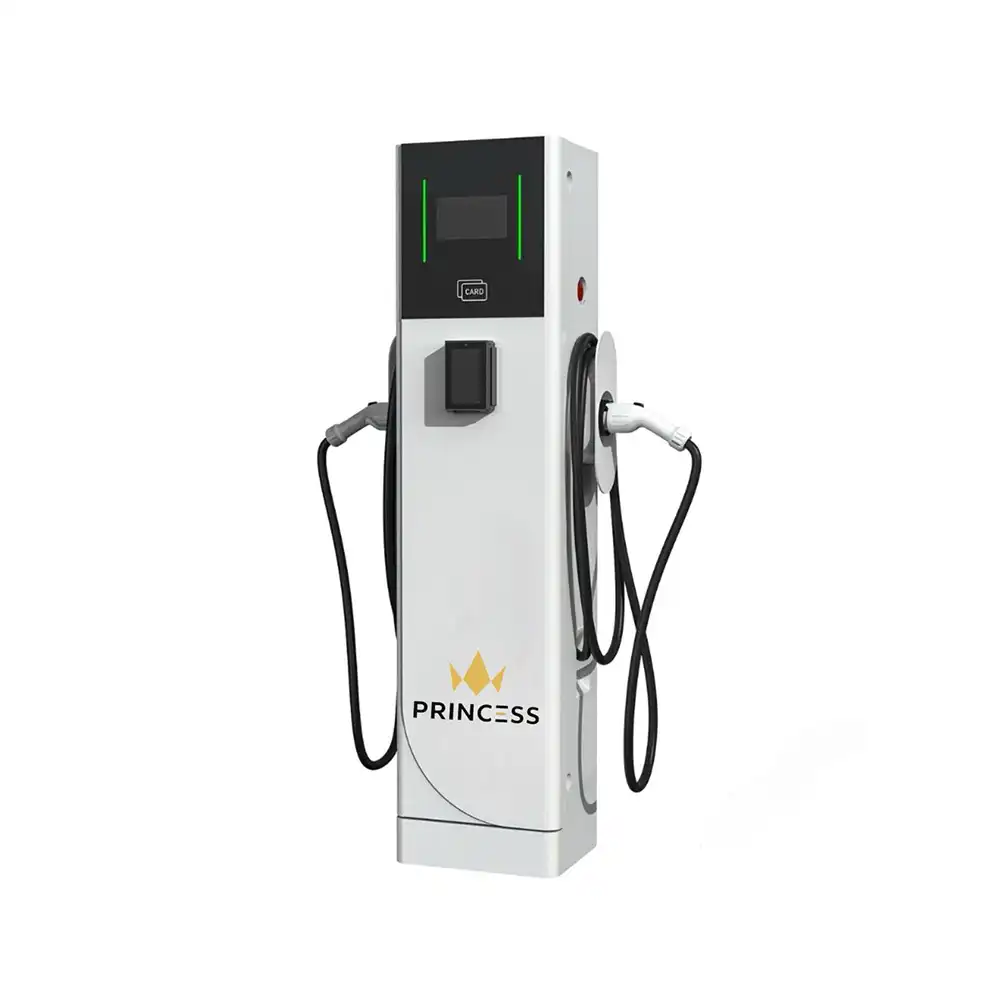

Princess EV 7KW – 44KW AC charging station
The Princess EV Solutions 7kW – 44kW AC Charger is a high-performance, reliable EV charging solution designed for both private and commercial use. Compatible with Type 2, Type 1, GB/T, and NACS connectors, it supports a maximum current of 32A, delivering fast and efficient charging for a wide range of electric vehicles. Engineered for safety, it includes multiple protection features such as overvoltage, overcurrent, leakage, and temperature protection. With an IP54 rating, it is suitable for both indoor and outdoor installations. The charger features an intuitive LCD display that provides real-time information on voltage, current, and power. Users can conveniently set the charging current and delay time, offering greater flexibility and control. Easy to install with options for wall-mounted or floor-mounted setups and backed by OEM services, this charger is a smart, future-ready choice for any EV charging need.
