AC Chargers, EV Chargers
Princess EV 22kW AC Wall Charger TYPE 2
SPECIFICATION TABLE
| DESCRIPTION | VALUE |
| Output Power | 22 kW |
| Output Current | 32A |
| Input Voltage | AC380VÂ |
| Input Current | 3P+N+PE |
| Input Current | 32A |
| Frequency | 50 Hz |
| Display | Available |
| Working Temperature | -30°C ~ +55°c |
| Altitude | 2000M |
| IP level | IP 54 |
| Unit Size | 220 x 290 x 100 MM |
| Charging Method | RFID/PLUS AND CHARGE/APP |
| Supported Interface | OCCPÂ |
| Communication Interface | 4G/ETHERNET |
| Gun Cable Length | 5M |
| Interface Standard | TYPE 2 |
| BRAND | PRINCESS |

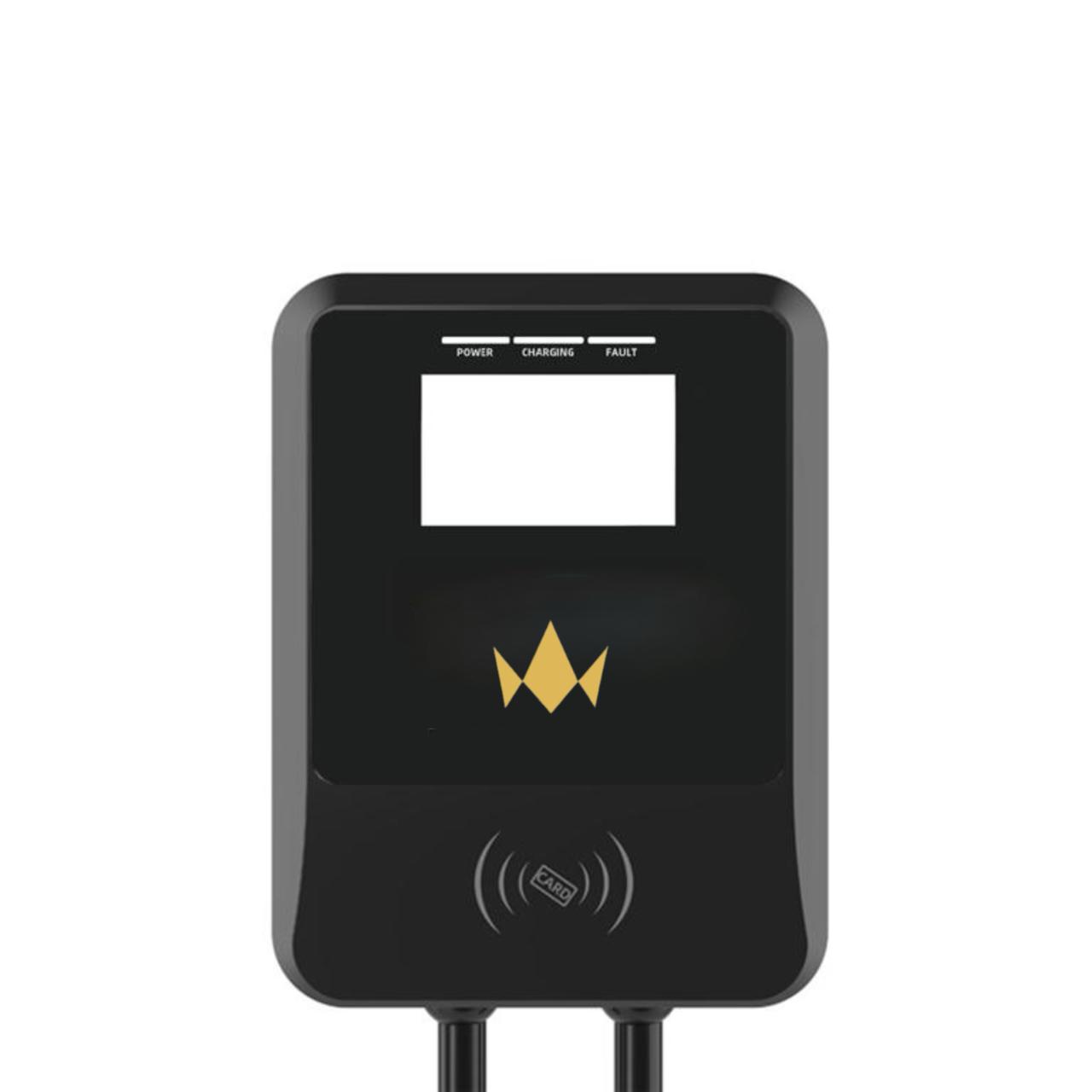

Princess EV 22kW AC Wall Charger TYPE 2
The Princess EV AC Wall Charger delivers efficient charging with 22 kW AC power, ideal for home charging. Featuring a 7-inch LCD screen, it provides real-time charging data, including time, voltage, current, power, and temperature. The charger supports the RFID card swipe authentication method.
Designed for durability, it holds an IP54 protection rating—moisture-proof, waterproof, mildew-resistant, dust-proof, and flame-retardant. Built-in safety features include protection against over/under-voltage, overload, and short circuit. It supports powerful data collection and communication functions via Ethernet and 4G, enabling remote monitoring and control.
Installation is straightforward. Fully compatible with all EVs on the market, the Princess EV AC Wall Charger offers a reliable and user-friendly solution for all your electric vehicle charging needs.
